Model: JC-VW460

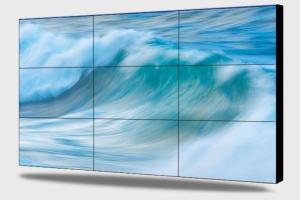

Video wall display product is featured with bigger display with multiple display units, it can achieve splicing display effect, which can present a much better display effect by bigger size and higher resolution.
For the model HD-N4650S, we use original Samsung/LG panel inside, which can ensure the reliable and perfect display color quality; and also built in industrial level processor, this can ensure the reliable 24/7 hours running.
This product is widely used in the digital signage application, such as the advertising display in shopping mall, airport, retail shops etc..
We also offer professional video wall display control software as total solution.
Product Specification
Display:
| Display Screen | 46" FHD-LCD panel with LED backlight |
| Panel Brand | Samsung/LG |
| Display Ratio | 16:9 |
| Bezel | 3.5mm |
| Color | 16.77M full colors |
| Display area | 1018.08mm(H)*572.67mm(V) |
| Resolution | 1920*1080 |
| Brightness | 500cd/m2 |
| Life time | Over 50,000 Hours |
| Contrast | 3500:1 |
| View Angle | 178° left and right, up and down |
Video Wall Processor built in:
√ All-in-one solution with built in video wall processor, support to full picture splicing display with splitter; and also can work together with matrix switcher and video wall processor;
√ Multi channels parallel processing, signal processing powerful;
√ RS232 serial remote control; each unit to support two-way RS232 loop out;
√ Does not need to dial the code to set up ID, the debugging is simple;
√ Support to customize 4K processor, to achieve the total video wall display achieve 4K resolution.
Interface:
| USB | USB*1 |
| HDMI Input | HDMI*1 |
| VGA Input | VGA*1 |
| DVI Input | DVI-I*1 |
| AV Input (BNC) | AV Input*2 |
| AV Output (BNC) | AV Output*2 |
| RJ 45 Input | RJ45 Input*1 |
| RJ 45 Output | RJ45 Output*2 |
Application
Because of the bigger splicing display effect, this product is widely used in the advertising application, such as shopping mall, chain store, airport, KTV, event etc.., to attract people’s attention.
The following case is a control center in Beijing, China:
